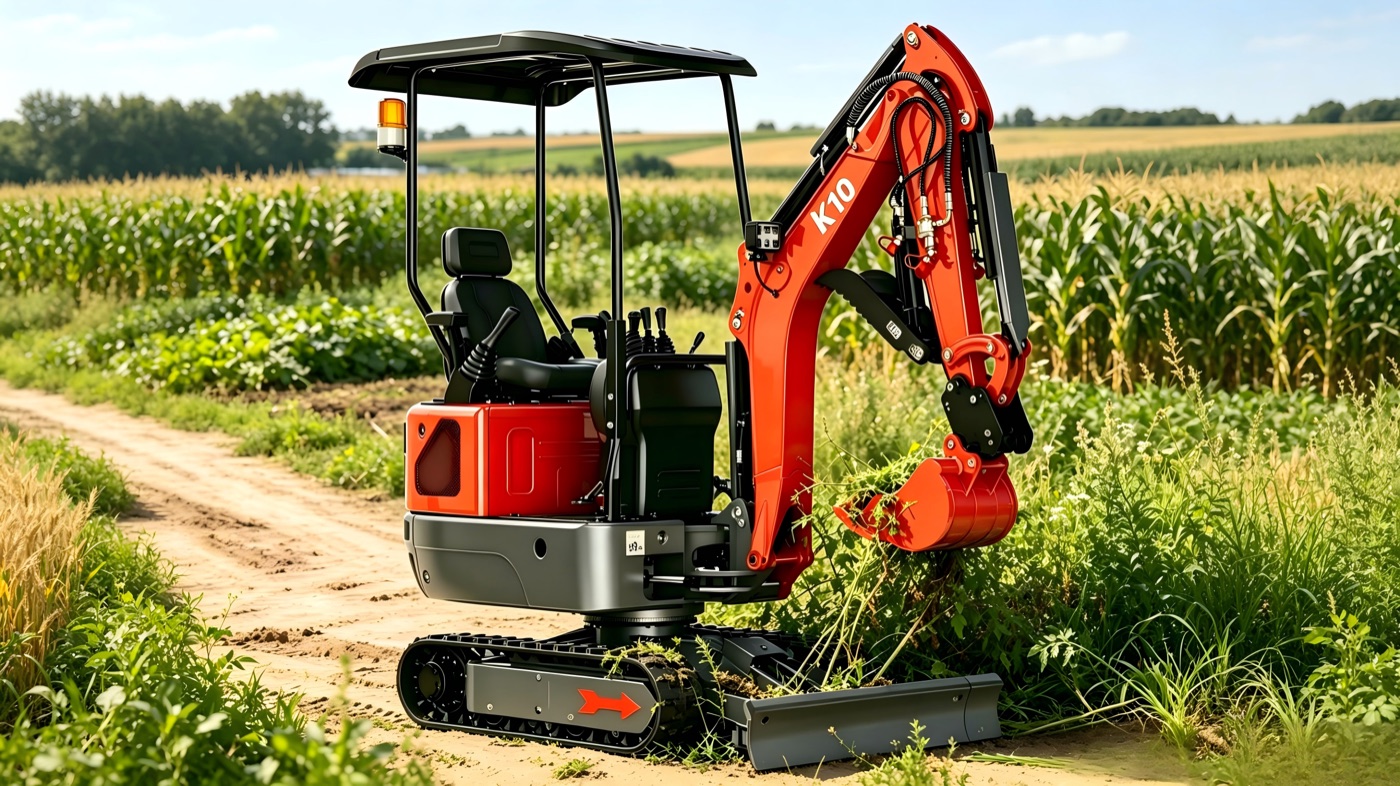

K10 Ultra-small
- 978 kg operating weight
- 1,833 mm max dig depth
- 13.4 kW max power
- 192F / B&S / Kubota Z482
Elevator access, courtyards, garden and agricultural auxiliary work.
KorvexHeavy machinery
KorvexHeavy machinery
Weifang, Shandong · China
Korvex manufactures compact mini excavators with Kubota power, diesel counterbalance forklifts from 2.5 to 5.0 tonnes, and full-electric pallet stackers for warehouses and narrow aisles — engineered with anti-rust baking paint and global warranty support.
978 kg to 3.2 t · elevator-friendly K13 · cab models with ROPS/FOPS
02CPC K II & H series · imported driveline · masts to 7.5 m
03ESC walkie · TB stand-on · TB15/20 reach · TBB · TBE
Machinery
Specifications below match Korvex factory catalogues. Final build, engine brand, and attachments are quoted per order — contact Vivi for pricing and availability.
Kubota diesels, internal travel motors, 360° swing, and baking-finish paint for corrosive sites. Choose by weight, dig depth, and whether you need elevator access or an enclosed cab.
Elevator access, courtyards, garden and agricultural auxiliary work.
Fits standard elevators; foldable armrests and hydraulic oil cooler for continuous duty.
Landscaping, agriculture, and precision earthmoving with boom swing and retractable tracks.
ROPS/FOPS cab, LCD monitor, Eaton swing motor — municipal and orchard work.
Urban construction with cast boom bracket and top-tier hydraulic pump.
Peak productivity for heavy earthmoving and rural infrastructure.
| Model | Weight | Bucket | Power | Engine | Max depth | Typical use |
|---|---|---|---|---|---|---|
| K10 | 978 kg | 0.014 m³ | 7.5–13.4 kW | 192F / B&S / Kubota Z482 | 1,833 mm | Elevator, ultra-small indoor sites |

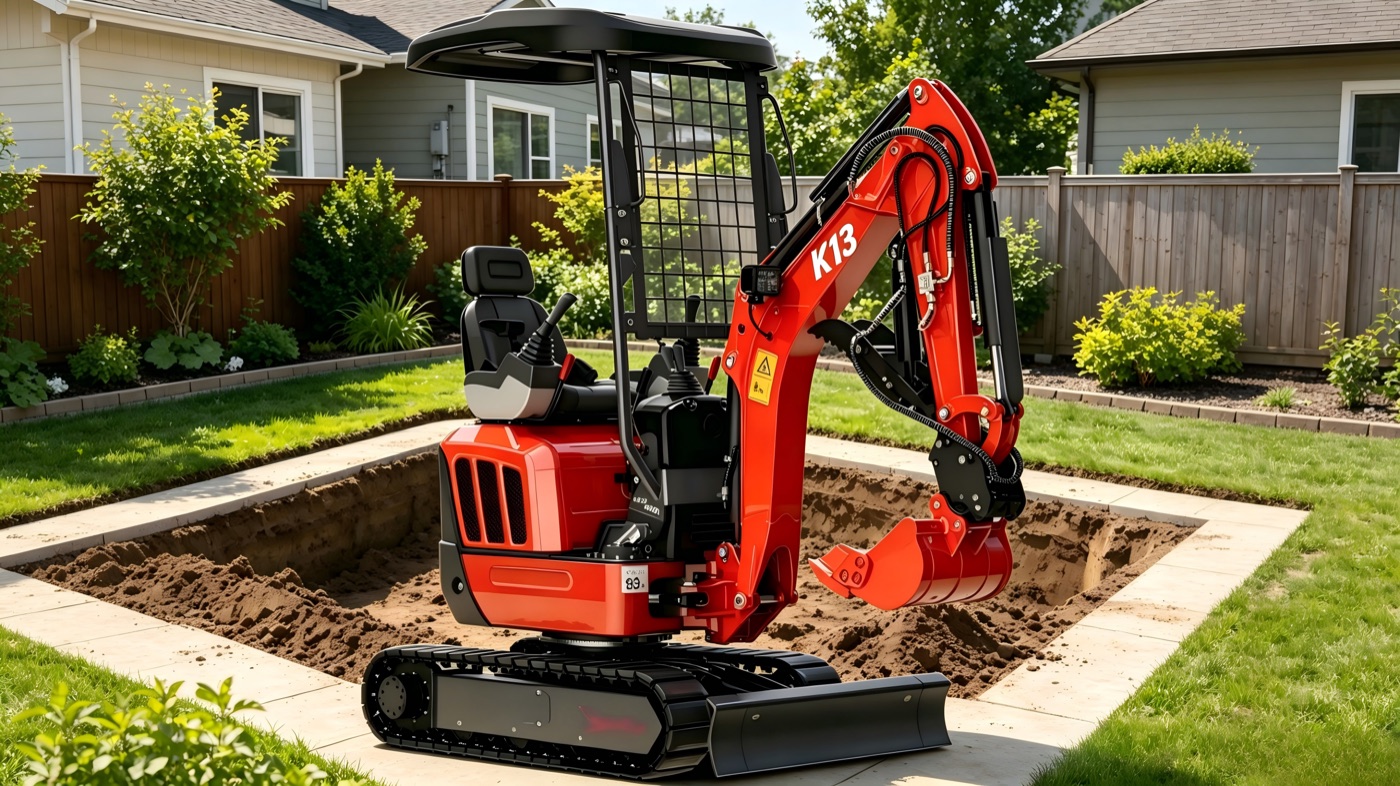

| K13 | 1,320 kg | 0.014 m³ | 10.2 kW | Kubota D722 | 2,044 mm | Courtyard renovation, indoor decoration |

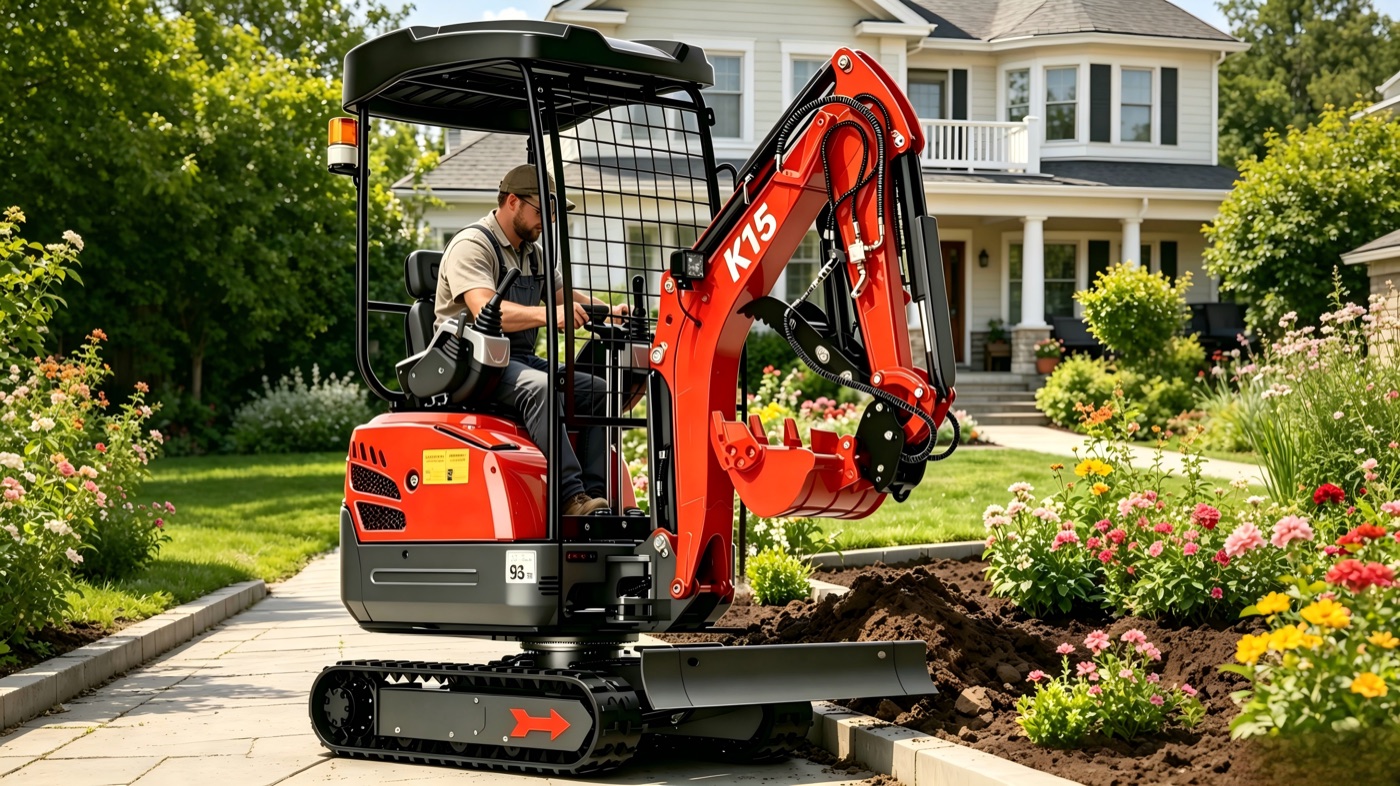

| K15 | 1,445 kg | 0.018 m³ | 10.2 kW | Kubota D722 | 1,807 mm | Garden maintenance, small farm reclamation |

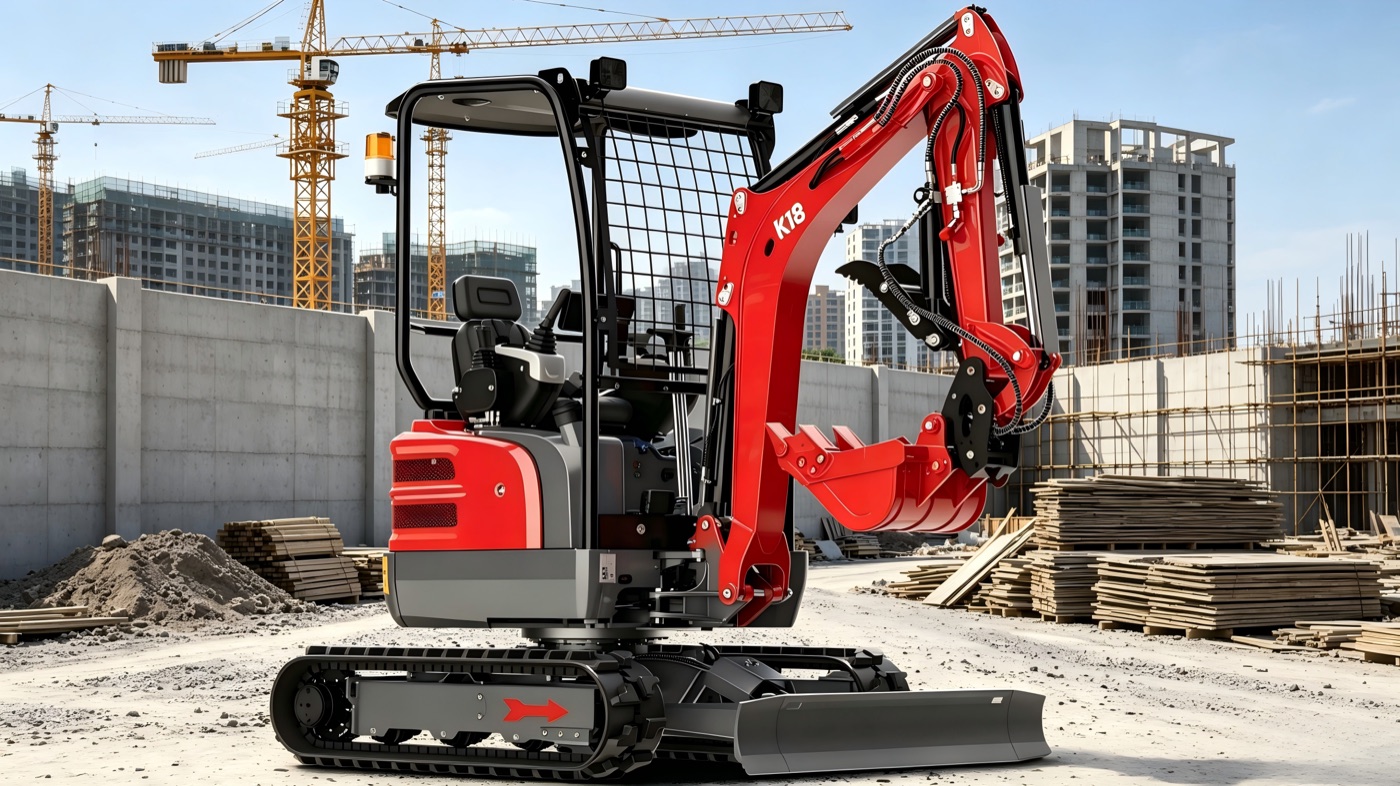

| K18 | 1,818 kg | 0.045 m³ | 11.8 kW | Kubota D902 | 2,420 mm | Municipal maintenance, orchard digging |

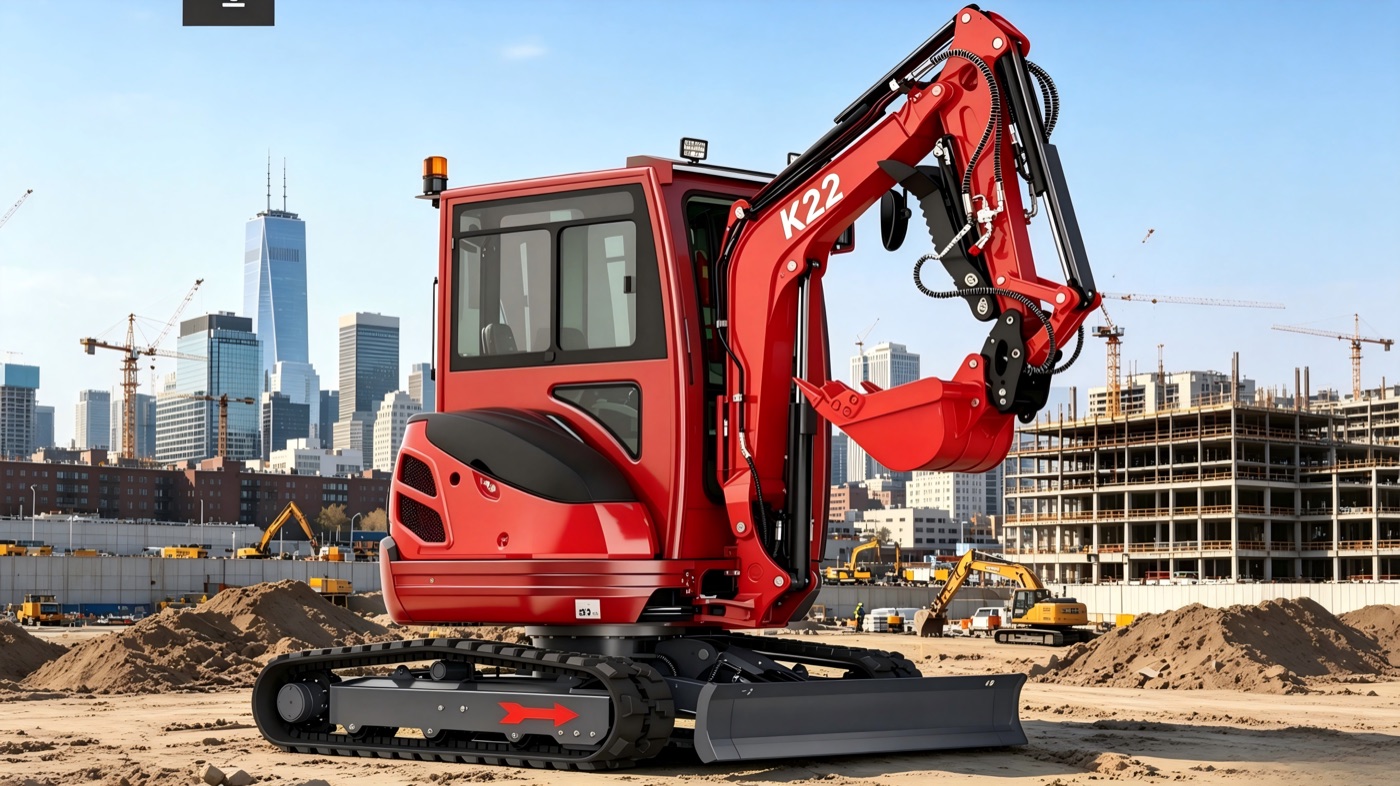

| K22 | 2,439 kg | 0.054 m³ | 18.2 kW | Kubota D1105 | 2,293 mm | Medium & small earthwork, infrastructure |

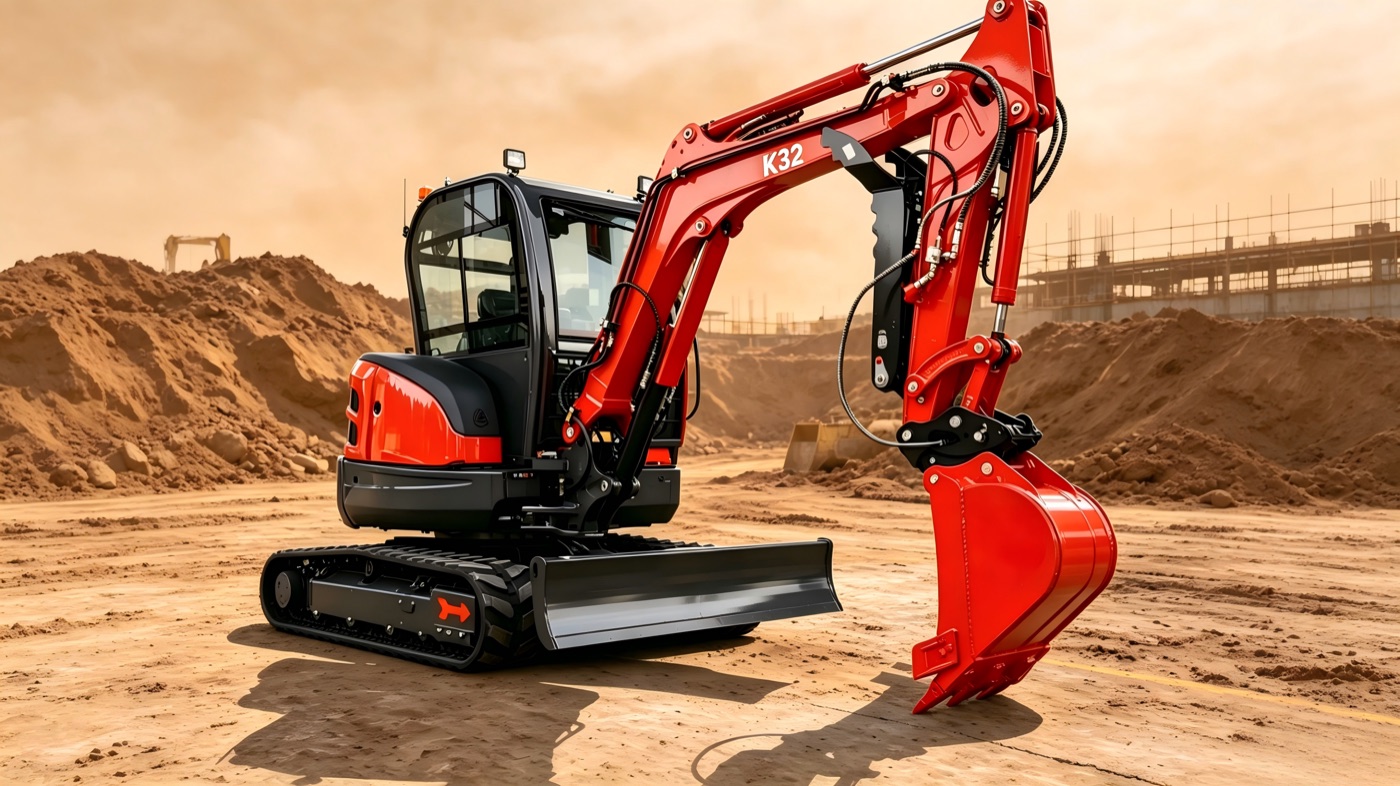

| K32 | 3,219 kg | 0.080 m³ | 18.2 kW | Kubota V1505 | 2,827 mm | Heavy earthwork, rural infrastructure |
Korvex CPC counterbalance forklifts cover 2.5–5.0 tonnes for everyday yard and warehouse work. Each build pairs an imported gearbox and drive axle with enlarged mast sections, seat OPS, and the same anti-rust baking finish used across the Korvex line.
Factory photos below; full model list and dimensions are in the forklift PDF — ask Vivi for mast height, tyre type, and engine brand on your quote.
| Model | Rated load | Series | Typical application |
|---|---|---|---|

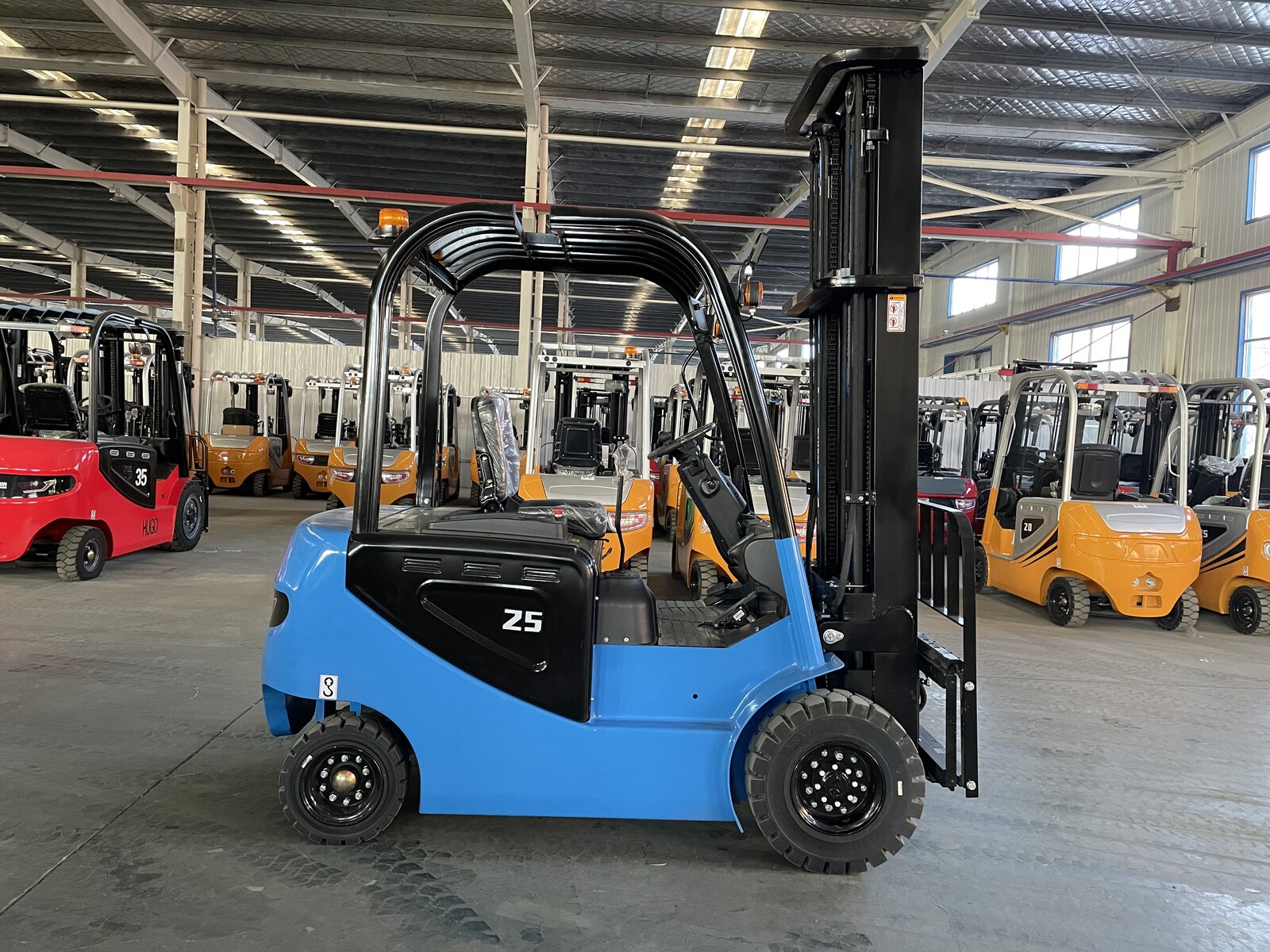

| CPC25-K II | 2.5 t | K II | Light logistics, rental fleets, tight yards |

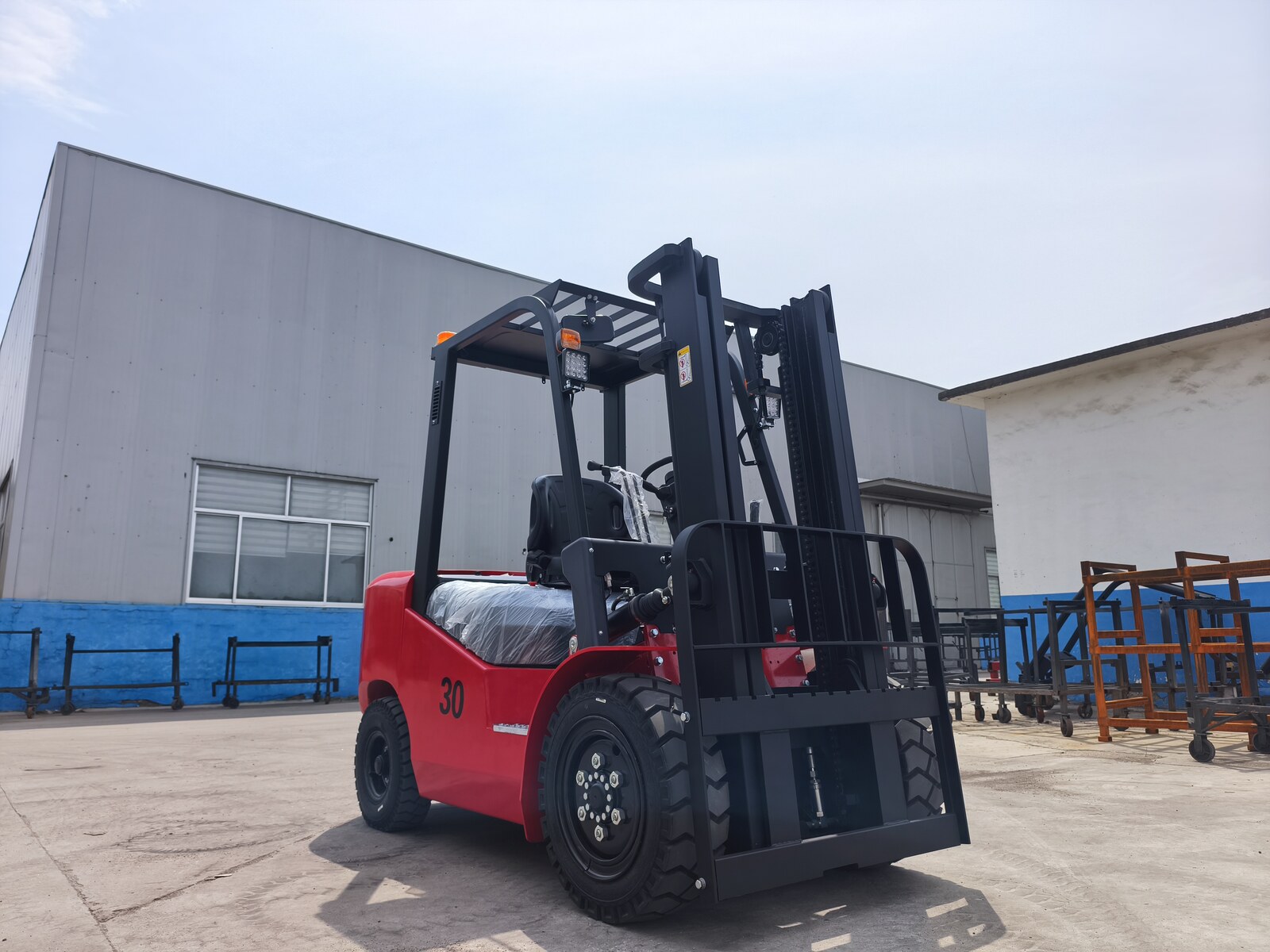

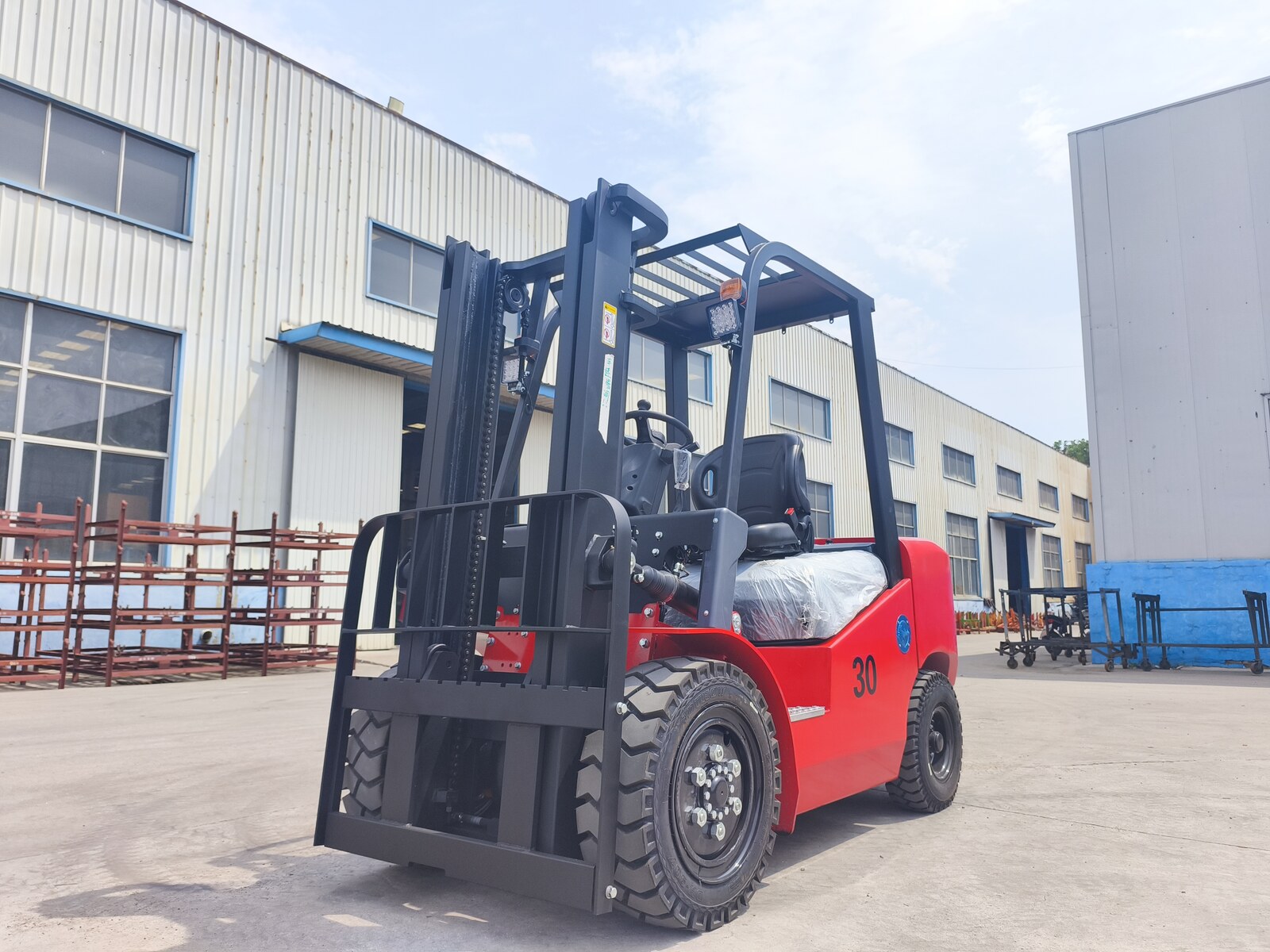

| CPC30-K II | 3.0 t | K II | General warehousing, casting steering axle |
| CPC35-K II | 3.5 t | K II | Heavier pallets, dustproof front axle option |
| CPC38-K II | 3.8 t | K II | High-throughput docks, reinforced mast |
| CPC40-H | 4.0 t | H | Outdoor yards, H-series driveline |
| CPC45-H | 4.5 t | H | Bulk goods, full anti-skid pedal layout |
| CPC50-H | 5.0 t | H | Maximum capacity in range · solid or pneumatic tyres |
Korvex electric stackers span walkie, stand-on, and reach-truck layouts for warehouses and narrow aisles. Pick the line that matches your aisle width, lift height, and whether operators walk or ride — detailed mast and battery tables stay in the factory PDF.
Five catalogue families below (ESC, TB, TB15/20, TBB, TBE). Use the tables for capacities; contact Vivi to match model codes to your duty cycle.
Walk-behind electric pallet stacker
Compact walkie for pallet put-away and stacking where operators stay on the floor. Maintenance-free 24 V batteries and Curtis control keep running costs predictable.
| Model range | Rated load | Lift height | Service weight | Drive / lift motor | Speed (laden / unladen) |
|---|---|---|---|---|---|
| ESC10M16 – ESC10M35 | 1,000 kg | 1,600–3,500 mm | 450–520 kg | 0.75 kW / 2.2 kW | 4.5 / 4.7 km/h |
| ESC12M25 – ESC12M35 | 1,200 kg | 2,500–3,500 mm | 520–580 kg | 0.75 kW / 2.2 kW | 4.5 / 4.7 km/h |
| ESC15M25 – ESC15M35 | 1,500 kg | 2,500–3,500 mm | 580–650 kg | 0.75 kW / 2.2 kW | 4.5 / 4.7 km/h |
Stand-on stacker · Curtis AC
Ride-on platform machine for medium aisles and longer travel between racks. One-hand control and a low, five-point frame aim for stable loads at height.
| Model | Rated load | Lift height | Service weight | Mast extended | Turning radius | Speed (load / no load) |
|---|---|---|---|---|---|---|
| TB1530 | 1,500 kg | 3,000 mm | 1,100 kg | 3,506 mm | 1,655 mm | 5.0 / 6.0 km/h |
| TB2030 | 2,000 kg | 3,000 mm | 1,250 kg | 3,506 mm | 1,655 mm | 5.0 / 6.0 km/h |
| TB1535 | 1,500 kg | 3,500 mm | 1,150 kg | 4,006 mm | 1,655 mm | 5.0 / 6.0 km/h |
| TB2035 | 2,000 kg | 3,500 mm | 1,300 kg | 4,006 mm | 1,655 mm | 5.0 / 6.0 km/h |
| TB1545 | 1,500 kg | 4,500 mm | 1,250 kg | 5,078 mm | 1,655 mm | 5.0 / 6.0 km/h |
| TB2045 | 2,000 kg | 4,500 mm | 1,550 kg | 5,078 mm | 1,655 mm | 5.0 / 6.0 km/h |
PU wheels · load centre 600 mm · electromagnetic brake · gradeability 6–10%.
Reach truck · electronic steering
Reach-in trucks for deep racking: side-pull battery change, 24 V traction pack, and single through triplex masts — triplex builds reach 5.5 m extended height.
| Mast type | Example models | Mast closed (h1) | Max lift (h3) | Mast extended (h4) |
|---|---|---|---|---|
| Single mast | TB1516, TB2016 | 1,766–1,866 mm | 1,600 mm | 2,090–2,190 mm |
| Single-cylinder duplex | TB1525–TB2045 | 1,966–2,275 mm | 2,500–4,500 mm | 2,490–5,078 mm |
| Double-cylinder duplex | TB1525–TB2045 | 1,966–2,275 mm | 2,500–4,500 mm | 2,490–5,078 mm |
| Triplex mast | TB1535S–TB2050S | 2,075–2,275 mm | 3,500–5,000 mm | 4,006–5,500 mm |
Stand-on pallet stacker for tight aisles
Narrow-aisle stand-on line with onboard charger and Curtis/AMP electrics. Walkie and stand-on variants share mast families from 800 kg to 2 t class.
| Series | Models (examples) | Rated capacity | Lift height range | Notes |
|---|---|---|---|---|
| TBB08 / TBB09 / TBB10 | TBB1025–TBB1045 | 800–1,000 kg | 2,500–4,500 mm | Single / duplex mast options |
| TBB12 / TBB15 / TBB16 | TBB1225–TBB1645 | 1,200–1,600 kg | 1,600–4,500 mm | Double-cylinder duplex mast |
| TBB20 / TBB20S / TBB20SQ | TBB2025–TBB2055 | 2,000 kg | 2,500–5,500 mm | Triplex with free lift on SQ line |
Capacity charts published per model vs load centre; subtract 150 kg when fitted with sideshifter (per factory chart).
Stand-on stacker · mechanical steering
Economical stand-on line with mechanical steering, quiet pump station, and AC drive for stepless travel — suited to steady shift work in standard aisle widths.
| Model | Rated load | Lift height options | Weight (incl. battery) | Travel speed | Drive / lift motor | Battery |
|---|---|---|---|---|---|---|
| TBE15 | 1,500 kg | 1,600–3,500 mm | 660 kg | 4 / 5 km/h | DC 0.75 kW / 2.2 kW | 2×12 V / 120 Ah |
| TBE20 | 2,000 kg | 1,600–3,500 mm | 690 kg | 4 / 5 km/h | AC 1.5 kW / 2.2 kW | 2×12 V / 120 Ah |
| TBE20Y | 2,000 kg | 1,600–4,000 mm | 780–800 kg | 4 / 5 km/h | AC 1.5 kW / 2.2 kW | 24 V / 180 Ah |
Polyurethane wheels · fork size 1,150×170×60 mm · turning radius 1,619 mm (pedal retracted) · electromagnetic brake.
Global service
Ready-to-ship inventory and a full range of custom attachments for diverse construction and warehouse needs.
Comprehensive protection for Kubota engine and hydraulic systems — peace of mind on export orders.
Unified anti-rust red baking paint for durability in harsh, humid, and coastal environments.
Catalogues
Download optimised factory PDFs — mini excavators, diesel forklifts, and electric stackers (ESC, TB, TB15/20, TBB, TBE).
Compressed for faster download · full-resolution print copies on request.
Enquiries
Korvex builds the machines. For pricing, shipping, custom builds, and attachments, reach the factory or Vivi, your Korvex sales contact.
Add: No. 4327 Xinglong Road, Chengguan Sub-District, Weifang, Shandong, China
Tel/Fax: 0086 536 3456770
Mobile: +86 150 5365 0025
WhatsApp/WeChat: +86 150 5365 0025
E-mail: info@korvex.com.cn
Web: www.korvex.com.cn
Vivi represents Korvex for international enquiries — quotes, export documentation, and fleet orders.
